| DSL Standards |
VDSL2,ADSL2/2+,ADSL |
| Wirelrss Standards |
IEEE802.11a/n/ac，5Ghz
IEEE802.11b/g/n，2.4Ghz |
| Signal rate |
5Ghz:Up to 867Mbps
2.4GHz:Up to 300Mbps |
| Operation Frequency |
2.4Ghz and 5Ghz |
| Receive Sensitivity |
5Ghz
11a 6Mbps：-96dbm，11a 54Mbps： -79dbm
11ac HT20：-71dbm，11ac HT40：-66dbm，11ac HT80：-63dbm，
11n HT20：-72dbm，11n HT40：-71dbm
2.4GHz
11g 54M：-77dbm
11n HT20：-74dbm，11n HT40 ：-72dbm |
| Wirelrss Securit |
WEP,WPA/WPA2，WPA-PSK/WPA2-PSK encryption |
| VOIP Standards |
SIP(RFC3261),ITU-T G.729/G.722/G.711a/G.711 |

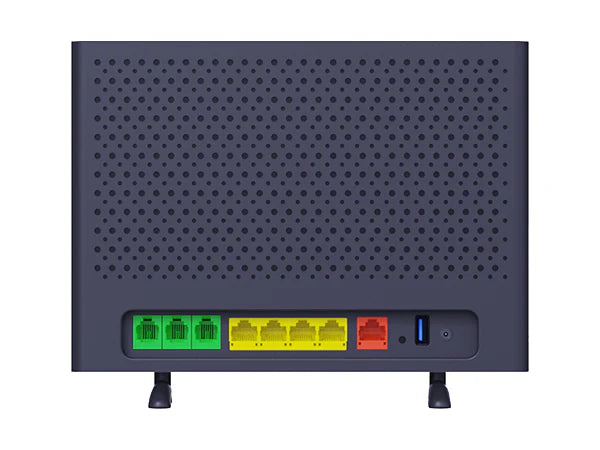

| Interfaces |
1×DSL Port
1×10/100/100Mbps WAN Port
4×10/100/100Mbps LAN Ports
2×FXS ports
1×USB3.0 ports |
| Buttons |
Powers ON/OFF Button，WPS Button，WIFI Button，Reset Button |
| Power Supply |
DC 12V 1.5A |
| Antenna |
2×5dbi dual band fixed antennas |
Dimensions
(W×D×H) |
210×150×32mm |

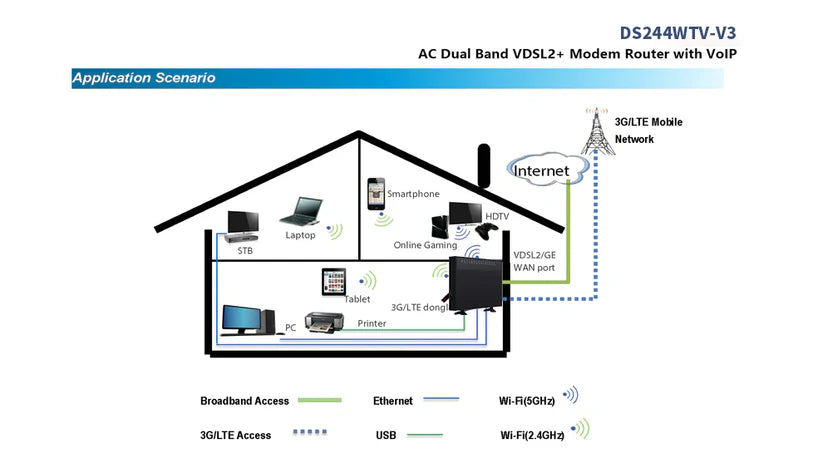

| WAN Type |
ATM/PTN/ETH/Dongle |
| DHCP |
Server，Client，DHCP Client List，Address Reservation |
| Quakity of Service |
WMM,Bandwidth Control |
| Port Forwarding |
Virtual Server，Port Triggering，UPnP,DMZ |
| VPN Pass-Through |
PPTH,L2TP,IPSec |
| Access Control |
Parental Control， Local Management Control， Host List，Access
Schedule，Rule Management |
| Firewall Security |
DoS，SPI Firewall
IP Address Filter/MAC Address Filter/Domain Filter
IP and MAC Address Binding |
| USB Sharing |
Support Samba(storage)/FTP Server/Media Server/Printer
Seerver/DLNA |
| VOIP Features |
Two RJ-11 FXS ports for connecting to analong telephones
Call forwarding，Call waiting，Call block，3-way conference call，etc |
| Management |
Access Control
Local Management
Remote Management |
| Internet Protocol |
IPv4，IPv6 |
| Operating Temperature |
0℃～40℃(32℉～104℉) |
| Storage Temperature |
-40℃～70℃(-40℉～158℉) |
| Operating Humidity |
10%～90%，non-condensing |
| Storage Humidity |
5%～90%，non-condensing |
| Certifications |
CE,RoHs |
