NetComm NF18 CloudMesh Mesh Networking Gateway

Description

The NF18MESH is a CloudMesh Gateway that will work wirelessly with the NS-01 CloudMesh Satellite, forming a single powerful Whole Home WiFi Mesh network with all the control and settings centralized on the Gateway. The Gateway becomes the WiFi Mesh master node with the WiFi client device roaming seamlessly between satellites and the gateway.

Highlights:

  • MESH ENABLED: The NF18MESH is a CloudMesh Gateway that works wirelessly with the NS-01 CloudMesh Satellite, forming a single powerful Whole Home WiFi Mesh network with all the control and settings centralized on the gateway. The gateway becomes the WiFi Mesh master node and the WiFi client device roams seamlessly between satellites and the gateway.
  • WIFI AUTOPILOT: Every NF18MESH Gateway includes the CloudMesh WiFi AutoPilot. WiFi Auto-Pilot constantly scans and analyses the end-user WiFi environment. If any detrimental changes are detected, the AutoPilot adjusts the gateway’s WiFi parameters. Any action taken is based on a patented and weighted algorithm ensuring that the internet connection experience is not compromised. It ensures that every WiFi client device is connected on the best possible channel, using the fastest available band, at the perfect RF power level and at the closest WiFi access point.
  • EASY PAIRING WITH CLOUDMESH SATELLITES: The CloudMesh system is a turnkey, out-of-the-box solution. ISP Satellite pre-provisioning is available via a cloud portal and API, allowing for a Zero Touch configuration experience for the end-user. There is also an easy and fast alternative for in home setup using WPS buttons.

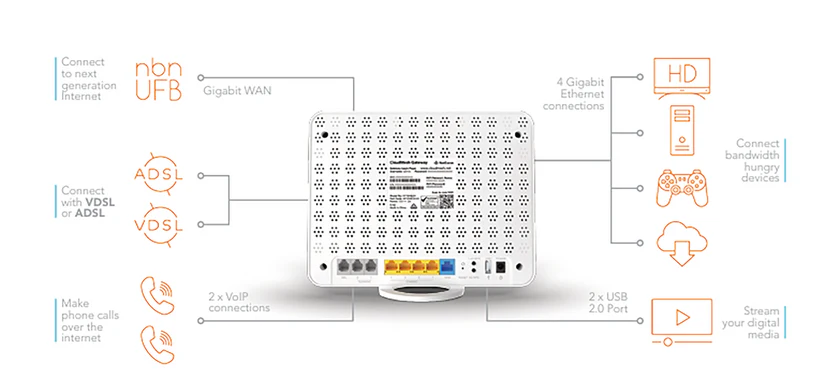

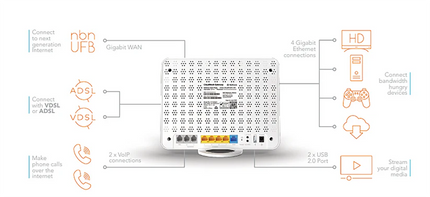

  • MADE FOR NBN AND UFB: Featuring a Gigabit WAN port as well as VDSL2/ADSL2 technologies, the NF18MESH will connect with FTTN, FTTB, FTTC and FTTH. The Gateway also features VoIP for HD quality voice calls with the capacity to connect two (2) phones.
  • CLOUD ORCHESTRATION: To operate effectively, multiple WiFi access points within the same environment need a centralized point of coordination
    and control. This is done by the WiFi Analytics Cloud. In addition to that, the Cloud is performing all the CPU intensive processing and is using sophisticated machine learning techniques to detect and recognize historical WiFi environment patterns to avoid future WiFi interference.
  • WORKS WITH WIFI ANALYTICS PLATFORM: The CloudMesh WiFi Analytics Platform is a turnkey, CPE integrated, cost-effective solution that provides the ultimate visibility into the health of the subscriber’s WiFi home network. It can dramatically lower operational costs and create superior enduser experiences. It does this by enabling proactive diagnostic, management and control of subscriber’s home WiFi environment, helping to resolve even the most elusive WiFi problems.
  • PARENTAL CONTROL:

    Control access for each family member by restricting Internet access based on time of day.

Specifications:

  • ENVIRONMENTAL AND PHYSICAL
    • Operating temperature: 0-40°C
    • Humidity: 10%-95% non-condensing
    • Storage temperature: -10-60°C
    • Humidity: 5%-95% non-condensing
    • DC Input Voltage: 12V/2A
    • Dimensions: 230 (w) x 200 (h) x 75 (d) mm ›Weight: 558g

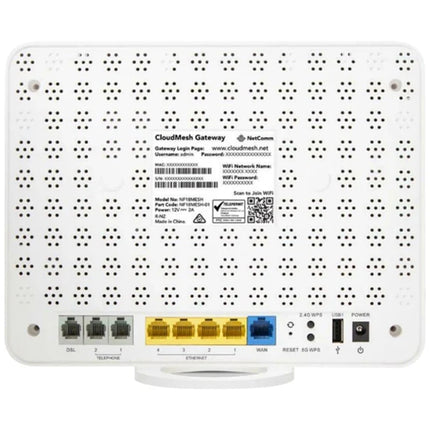

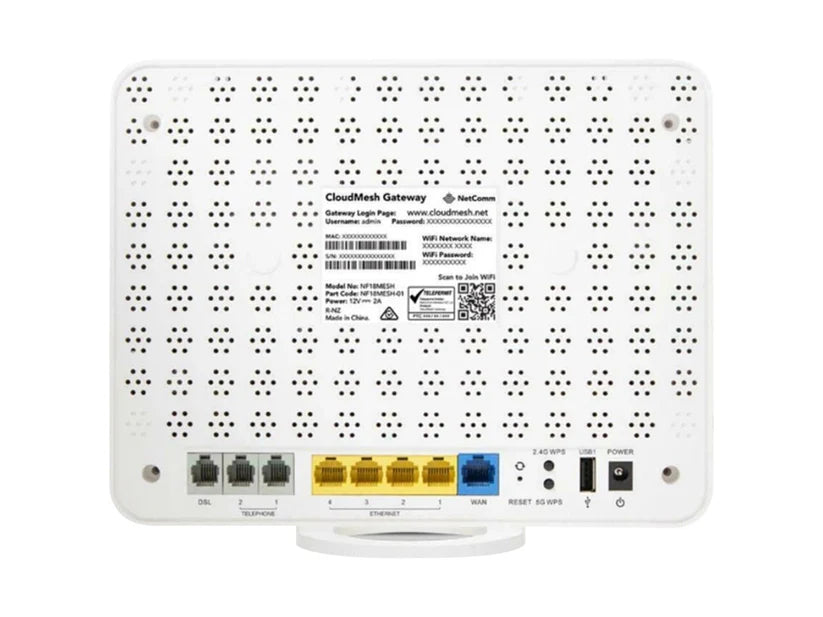

  • DEVICE INTERFACE
    • 1 x RJ45 10/100/1000Mbps WAN port
    • 1 x ADSL / VDSL port ›4 x RJ45 10/100/1000Mbps LAN ports
    • 2 x RJ11 Phone ports (VoIP)
    • 1 x Reset button
    • 2 x WPS buttons (2.4GHz and 5GHz)
    • 1 x Power jack
    • 2 x USB 2.0 Ports (storage)
    • 1 x Power switch
    • LED (Power/DSL/Internet/WAN/LAN1-4/ 2.4GHz/5GHz/WPS/USB1-2/ Phone1-2)
  • VDSL:
    • PPPoE/PPPoA/IPoA/ Static IP/ Dynamic IP/Bridge
    • ITU-T G.993.2 VDSL2 ›Supports 8a,8b,12a,12b,17a profile
    • Supports ATM and PTM
    • Supports G.INP
  • ADSL2+:
    • PPPoE/PPPoA/IPoA/Static IP/ Dynamic IP/Bridge
    • ITU G.992.1 (G.dmt) › ITU G.992.2 (G.lite)
    • ITU G.992.3 › ITU G.992.3 (Annex J)
    • ITU G.992.3 (Annex L)
    • ITU G.992.5
    • ITU G.992.5 (Annex M)
    • Supports multiple PVCs
  • ETHERNET WAN:
    • PPPoE, DHCP client, Static IP
  • WIRELESS:
    • Compatible with IEEE 802.11b, IEEE 802.11g, IEEE 802.11n and IEEE 802.11ac
    • Supports concurrent dual band (2.4GHz/5GHz) wireless › SSID broadcast or in stealth mode
    • Auto/Manual Channel selection
    • WEP/WPA/WPA-PSK/WPA2/WPA2-PSK
    • WPS button (WiFi Protected Setup)
  • VoIP PROTOCOL:
    • SIP2.0
    • G.711, G.723 and G.726
    • FAX T.38 FAX Relay
  • MEDIA:
    • File sharing (SAMBA v1 only)
    • DLNA
  • SECURITY:
    • Firewall
    • MAC filtering
  • ROUTING:
    • Static Route
    • Dynamic Route (RIP v1/v2)
    • DMZ
    • Supports Layer 2 Bridge Mode
  • ADMINISTRATION:
    • QoS
    • SNMP
    • UPnP
    • Syslog
    • Web-based UI
    • Remote Login
    • TR-069 Auto provisioning
    • Backup/Restore Settings
  • COMPLIANCE:
    • RCM, NZ Telepermit

NetComm NF18 CloudMesh Mesh Networking Gateway

Product form

The NF18MESH is a CloudMesh Gateway that will work wirelessly with the NS-01 CloudMesh Satellite, forming a single powerful Whole... Read more

10 in stock

$69.00 Incl. VAT

      Description

      The NF18MESH is a CloudMesh Gateway that will work wirelessly with the NS-01 CloudMesh Satellite, forming a single powerful Whole Home WiFi Mesh network with all the control and settings centralized on the Gateway. The Gateway becomes the WiFi Mesh master node with the WiFi client device roaming seamlessly between satellites and the gateway.

      Highlights:

      • MESH ENABLED: The NF18MESH is a CloudMesh Gateway that works wirelessly with the NS-01 CloudMesh Satellite, forming a single powerful Whole Home WiFi Mesh network with all the control and settings centralized on the gateway. The gateway becomes the WiFi Mesh master node and the WiFi client device roams seamlessly between satellites and the gateway.
      • WIFI AUTOPILOT: Every NF18MESH Gateway includes the CloudMesh WiFi AutoPilot. WiFi Auto-Pilot constantly scans and analyses the end-user WiFi environment. If any detrimental changes are detected, the AutoPilot adjusts the gateway’s WiFi parameters. Any action taken is based on a patented and weighted algorithm ensuring that the internet connection experience is not compromised. It ensures that every WiFi client device is connected on the best possible channel, using the fastest available band, at the perfect RF power level and at the closest WiFi access point.
      • EASY PAIRING WITH CLOUDMESH SATELLITES: The CloudMesh system is a turnkey, out-of-the-box solution. ISP Satellite pre-provisioning is available via a cloud portal and API, allowing for a Zero Touch configuration experience for the end-user. There is also an easy and fast alternative for in home setup using WPS buttons.
      • MADE FOR NBN AND UFB: Featuring a Gigabit WAN port as well as VDSL2/ADSL2 technologies, the NF18MESH will connect with FTTN, FTTB, FTTC and FTTH. The Gateway also features VoIP for HD quality voice calls with the capacity to connect two (2) phones.
      • CLOUD ORCHESTRATION: To operate effectively, multiple WiFi access points within the same environment need a centralized point of coordination
        and control. This is done by the WiFi Analytics Cloud. In addition to that, the Cloud is performing all the CPU intensive processing and is using sophisticated machine learning techniques to detect and recognize historical WiFi environment patterns to avoid future WiFi interference.
      • WORKS WITH WIFI ANALYTICS PLATFORM: The CloudMesh WiFi Analytics Platform is a turnkey, CPE integrated, cost-effective solution that provides the ultimate visibility into the health of the subscriber’s WiFi home network. It can dramatically lower operational costs and create superior enduser experiences. It does this by enabling proactive diagnostic, management and control of subscriber’s home WiFi environment, helping to resolve even the most elusive WiFi problems.
      • PARENTAL CONTROL:

        Control access for each family member by restricting Internet access based on time of day.

      Specifications:

      • ENVIRONMENTAL AND PHYSICAL
        • Operating temperature: 0-40°C
        • Humidity: 10%-95% non-condensing
        • Storage temperature: -10-60°C
        • Humidity: 5%-95% non-condensing
        • DC Input Voltage: 12V/2A
        • Dimensions: 230 (w) x 200 (h) x 75 (d) mm ›Weight: 558g
      • DEVICE INTERFACE
        • 1 x RJ45 10/100/1000Mbps WAN port
        • 1 x ADSL / VDSL port ›4 x RJ45 10/100/1000Mbps LAN ports
        • 2 x RJ11 Phone ports (VoIP)
        • 1 x Reset button
        • 2 x WPS buttons (2.4GHz and 5GHz)
        • 1 x Power jack
        • 2 x USB 2.0 Ports (storage)
        • 1 x Power switch
        • LED (Power/DSL/Internet/WAN/LAN1-4/ 2.4GHz/5GHz/WPS/USB1-2/ Phone1-2)
      • VDSL:
        • PPPoE/PPPoA/IPoA/ Static IP/ Dynamic IP/Bridge
        • ITU-T G.993.2 VDSL2 ›Supports 8a,8b,12a,12b,17a profile
        • Supports ATM and PTM
        • Supports G.INP
      • ADSL2+:
        • PPPoE/PPPoA/IPoA/Static IP/ Dynamic IP/Bridge
        • ITU G.992.1 (G.dmt) › ITU G.992.2 (G.lite)
        • ITU G.992.3 › ITU G.992.3 (Annex J)
        • ITU G.992.3 (Annex L)
        • ITU G.992.5
        • ITU G.992.5 (Annex M)
        • Supports multiple PVCs
      • ETHERNET WAN:
        • PPPoE, DHCP client, Static IP
      • WIRELESS:
        • Compatible with IEEE 802.11b, IEEE 802.11g, IEEE 802.11n and IEEE 802.11ac
        • Supports concurrent dual band (2.4GHz/5GHz) wireless › SSID broadcast or in stealth mode
        • Auto/Manual Channel selection
        • WEP/WPA/WPA-PSK/WPA2/WPA2-PSK
        • WPS button (WiFi Protected Setup)
      • VoIP PROTOCOL:
        • SIP2.0
        • G.711, G.723 and G.726
        • FAX T.38 FAX Relay
      • MEDIA:
        • File sharing (SAMBA v1 only)
        • DLNA
      • SECURITY:
        • Firewall
        • MAC filtering
      • ROUTING:
        • Static Route
        • Dynamic Route (RIP v1/v2)
        • DMZ
        • Supports Layer 2 Bridge Mode
      • ADMINISTRATION:
        • QoS
        • SNMP
        • UPnP
        • Syslog
        • Web-based UI
        • Remote Login
        • TR-069 Auto provisioning
        • Backup/Restore Settings
      • COMPLIANCE:
        • RCM, NZ Telepermit
