Description

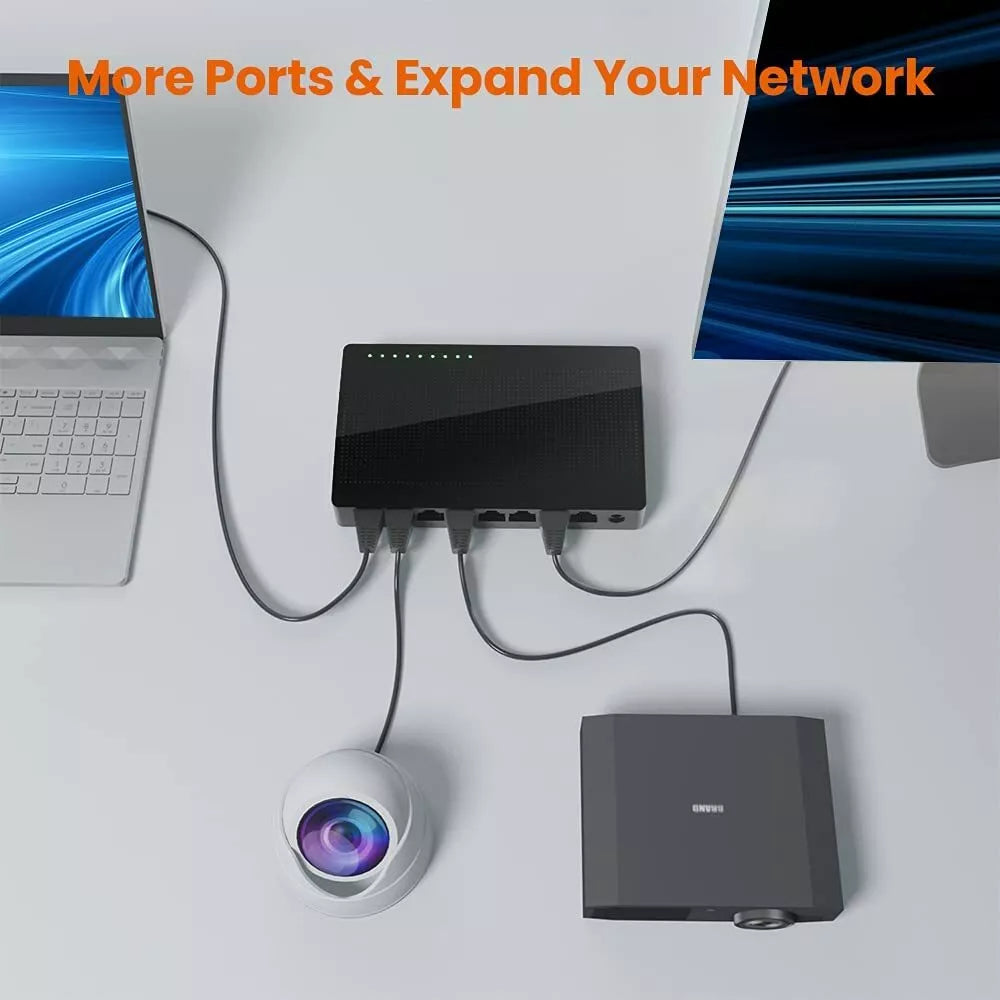

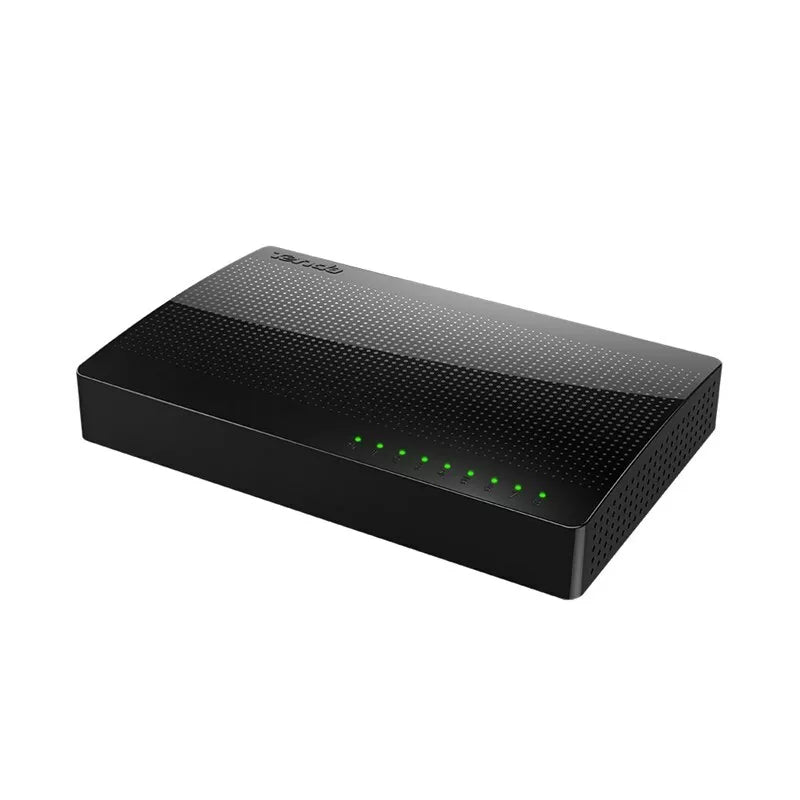

SG108, designed by Tenda, are Ethernet switches with all gigabit ports. With high performance, fancy design and easy to maintain features, SG108 are especially fit for scenarios requiring fast transmission, such as schools, families, SMBs and small-scale surveillance. The switches provide several Ethernet ports for downlink extensions and can also connect to uplink network devices. Compared with 100M switches, SG108 have a transmission speed 10 times faster, capable of transmitting large files, thus solving the video lag and video loss problems for HD surveillance. Besides, SG108 support both desktop installation and wall mounting, can be played once plugged, and are easy to use without configuration. The switches are ideal choices for you to improve network performance.
Highlights:
- Compliant with IEEE802.3, IEEE802.3u, IEEE802.3ab and IEEE802.3x.

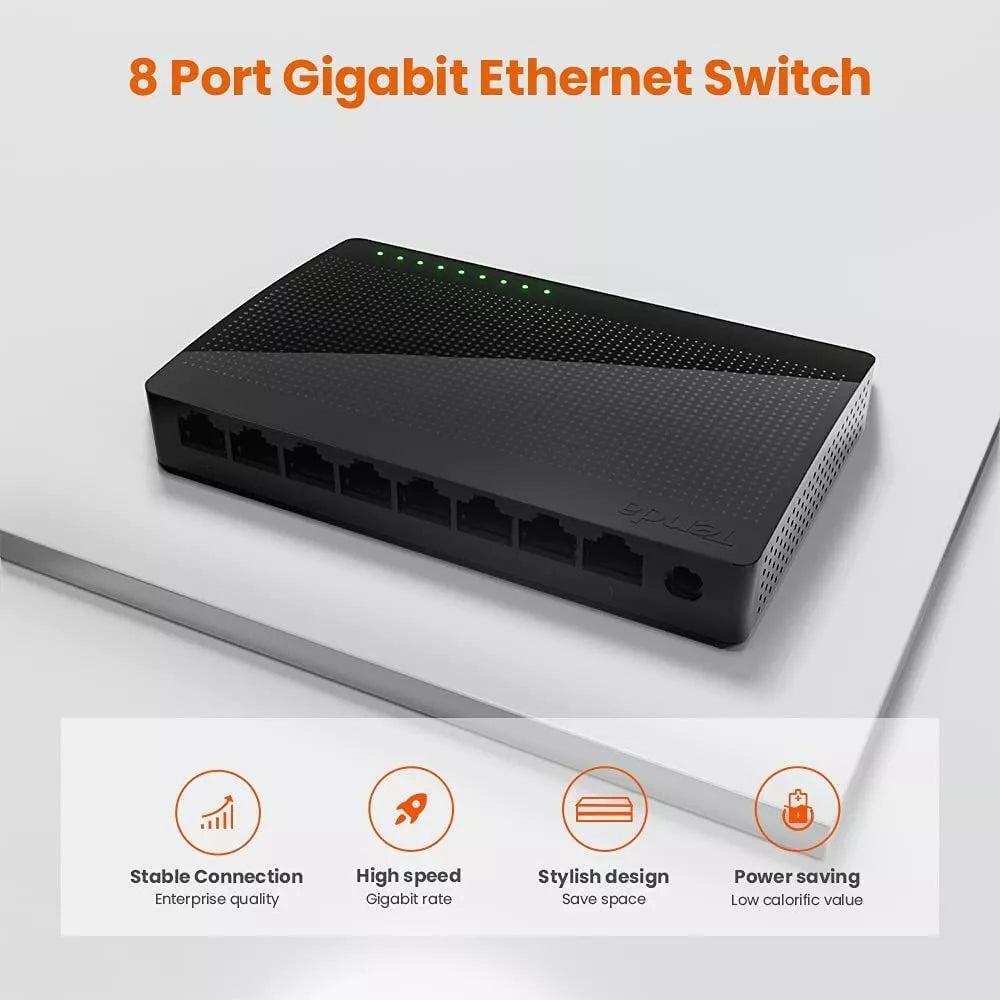

- Provide 8 10/100/1000 Mbps auto-negotiation RJ-45 ports.
- Support auto MDI/MDIX function on all ports.
- Offer unblocking backplane bandwidth up to 10G/16G.

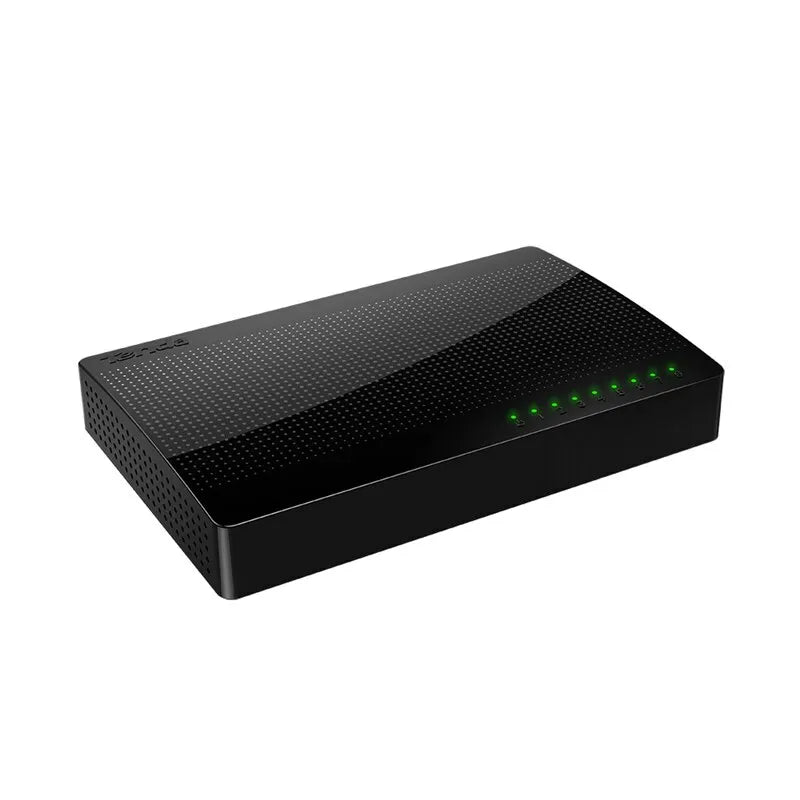

- Provide power and port status indicators, easy to check faults.

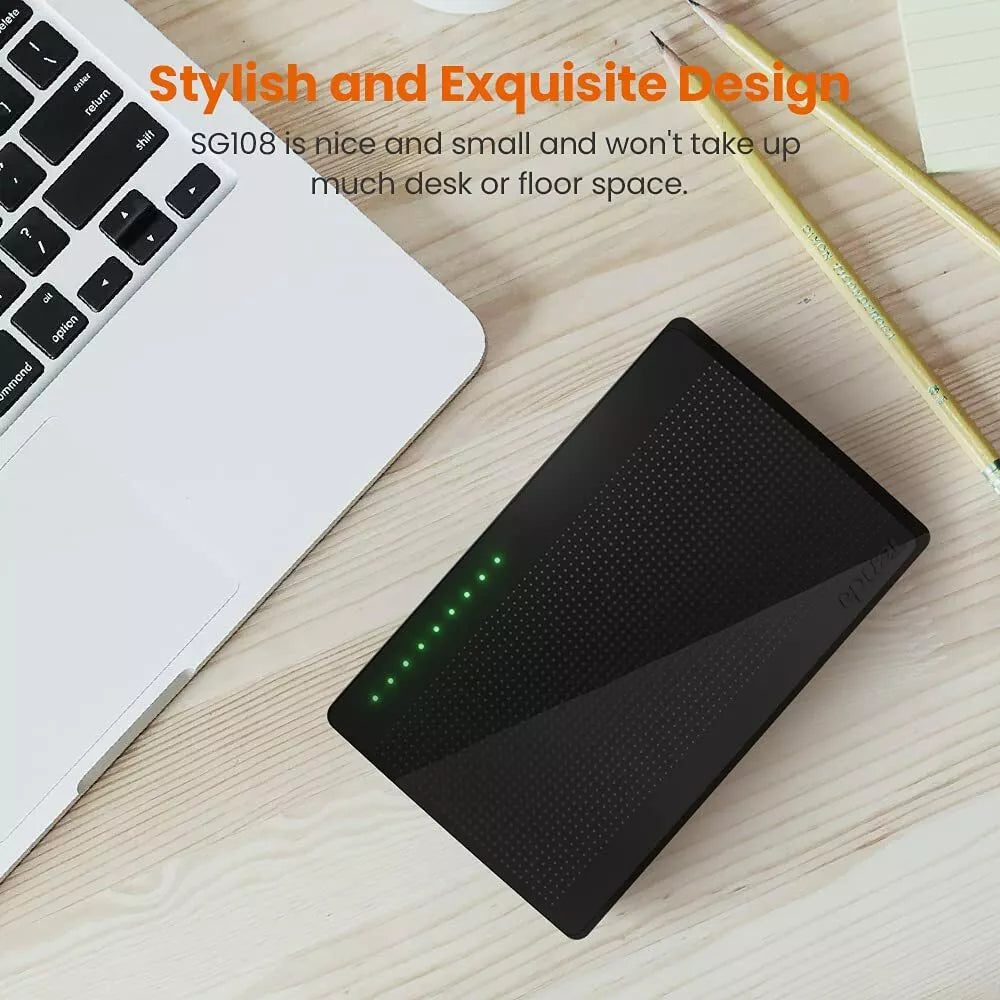

- Support desktop installation and wall mounting, with exquisite design on plastic shells.
Specifications:
- Model: SG108
- Network Standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3x
- LED Indicators:
- Ports: 8 * 10/100/1000 Mbps Base-T ports
- Transmission Media: Recommended: Cat 5 UTP, Cat 5e UTP or better
- Switching Mode: Store-and-forward
- Switching Capacity: 10Gbps
- Packet Forwarding Rate: 7.44Mpps
- MAC Address Table: 2K
- Total Power Consumption: <3W
- Power Input/Output: Input: 220V 50Hz AC Output: 5V 0.6A DC
- Dimensions (L*W*H): 82mm*52mm*22mm
- Environment:
- Operating Temperature: 0℃ - 40℃
- Storage Temperature: -40℃ - 70℃
- Operating Humidity: 10% - 90% RH, non-condensing
- Storage Humidity: 5% - 90% RH, non-condensing
