Description

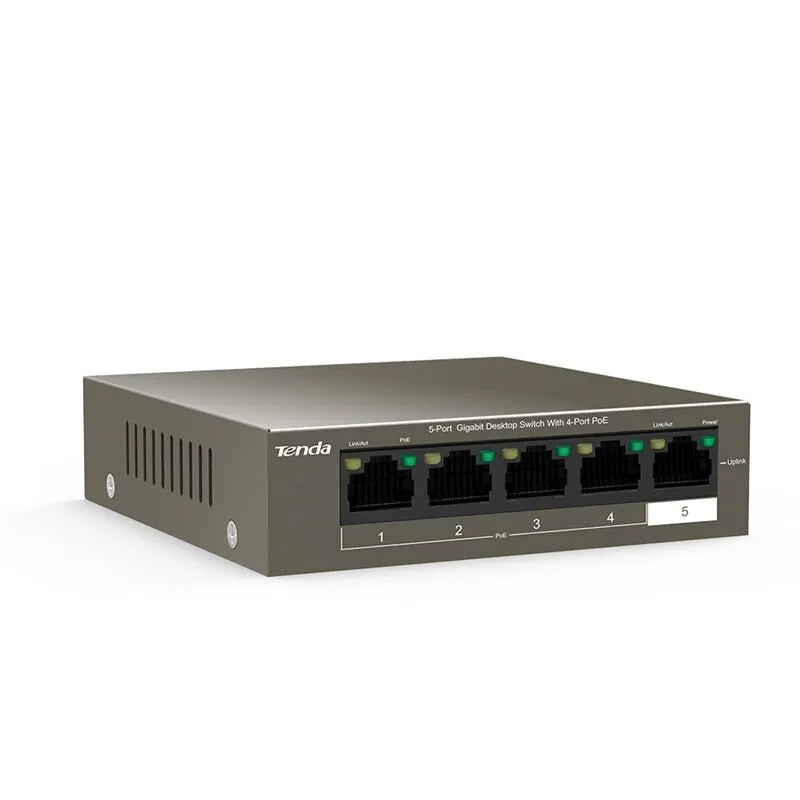

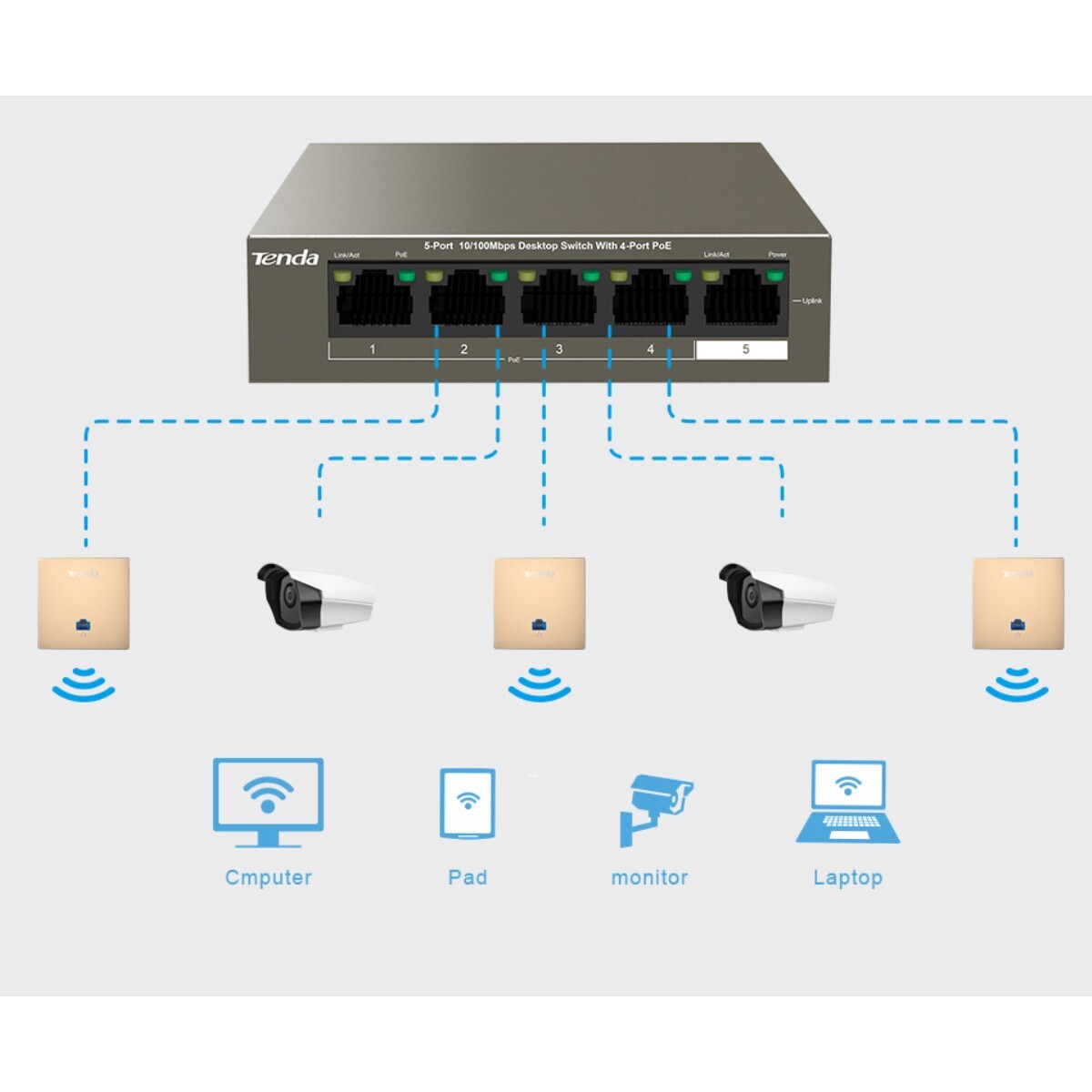

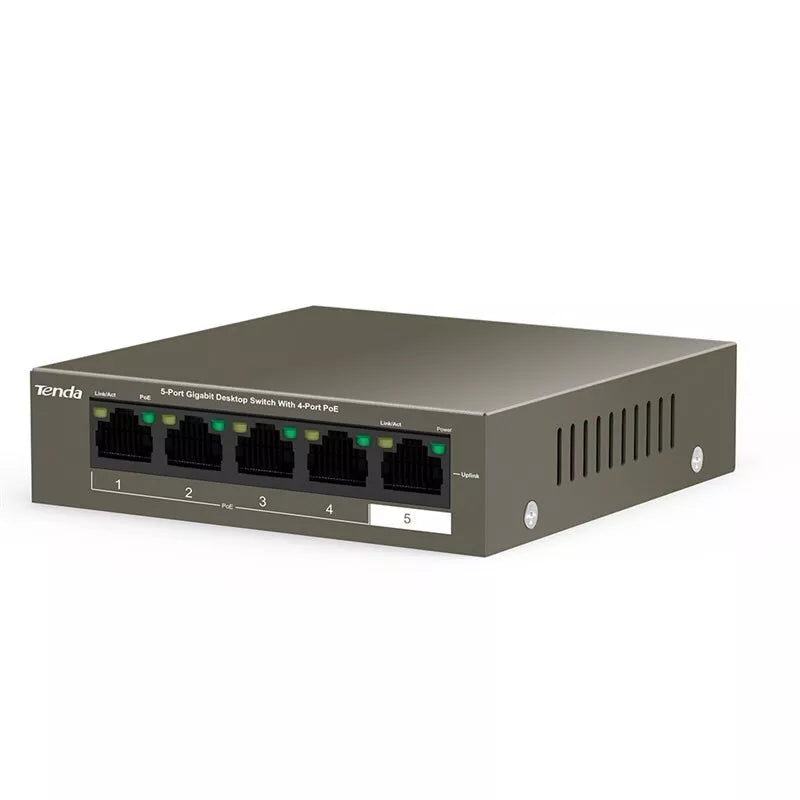

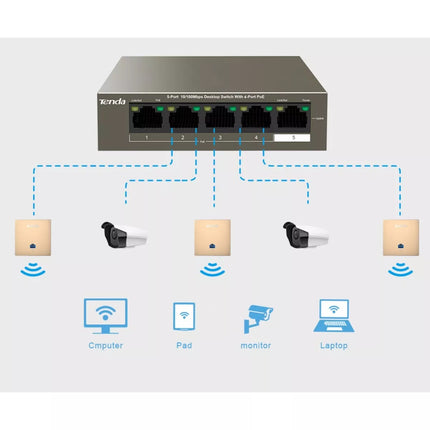

TEG1105P-4-63W is a Tenda PoE switch that offers 5 10/100/1000 Mbps Base-TX RJ45 ports. Ports 1-4 comply with the IEEE 802.3af standard (maximum PoE power output: 15.4 W) and 802.3at standard (maximum PoE power output: 30 W). The switch offers a maximum PoE power output of 58 W and can supply power to and exchange data with APs, IP cameras, and IP phones through CAT5 cables. It also provides simple management modes such as VLAN, to help reduce cabling costs of IP terminals like APs and IP cameras.
Highlights:
- 5 10/100/1000 Mbps Base-T RJ45 port.
- Ports 1-4: IEEE 802.3af/at PoE ports.
- Lightning protection 6KV.
- Maximum power output of each PoE port: 30W.
- Maximum power output of the switch: 58W.
- Desktop size, Power Adapter Output 63W.
- Support One-Key VLAN, Port 1-4 will be isolated respectively but can communicate with the 5 ports.
Specifications:
- Product Mode: TEG1105P-4-63W
- Standards & Protocols: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3af, IEEE 802.3at, IEEE 802.3ab
- Switching capacity: 10Gbps
- Throughput: 7.44Mpps
- Dimensions (W × D × H): 100mm*100mm*26mm
- Lightning protection: 6KV
- Indicators: Link/Act, PoE Status, Power, PoE Max
- Interfaces:
- 4 10/100/1000Mbps RJ45 Ports (Data/PoE)
- 1 10/100/1000Mbps RJ45 Ports (Data) (Auto Negotiation/Auto MDI/MDIX)
-
Capacity:
- Wire-speed forwarding: support
- Forwarding mode: Forwarding mode
- Mac Address Table: 2K
-
PoE Supply:
- Port 1 to Port 4 support standard IEEE802.3at/af
- Power (maximum power for each port is 30W)
- PoE power type is end-span (12+, 36- and 45+, 78- line pair)
-
Input Voltage:
- AC：100-240V~50/60Hz
- DC：51V /1.25A（Power Adapter Output）
-
Power consumption:
- In full configuration: <63.7W
- Power Supply: 57.8W
-
Environment:
- Operating Temperature: 0℃~40℃ (32℉~104℉)
- Storage Temperature: -40℃~70℃ (-40℉~158℉)
- Operating Humidity: 10%~90% non-condensing
- Storage Humidity: 5%~90% non-condensing
-

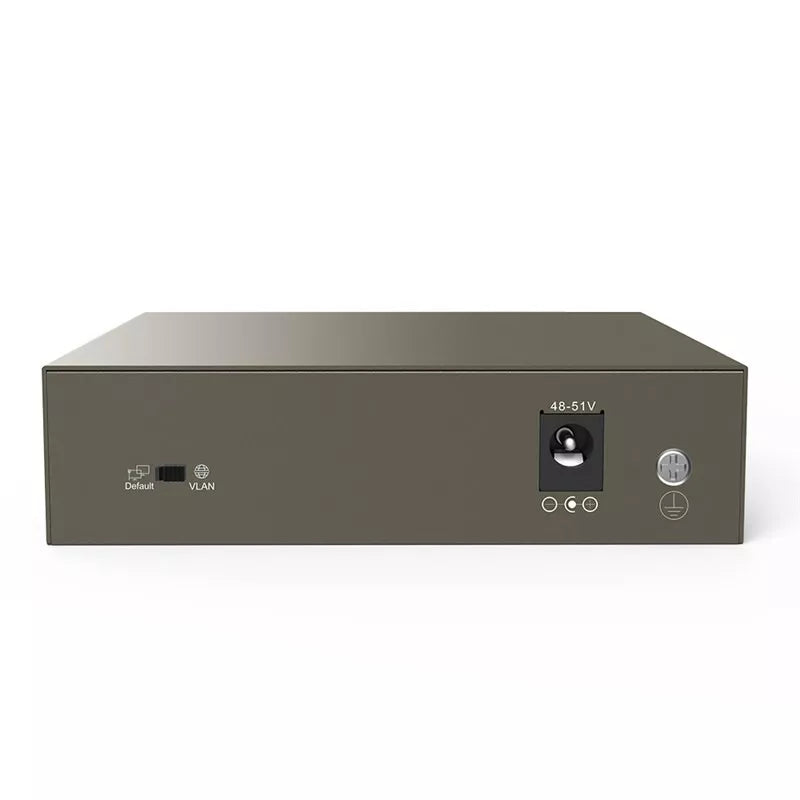

One-key mode:

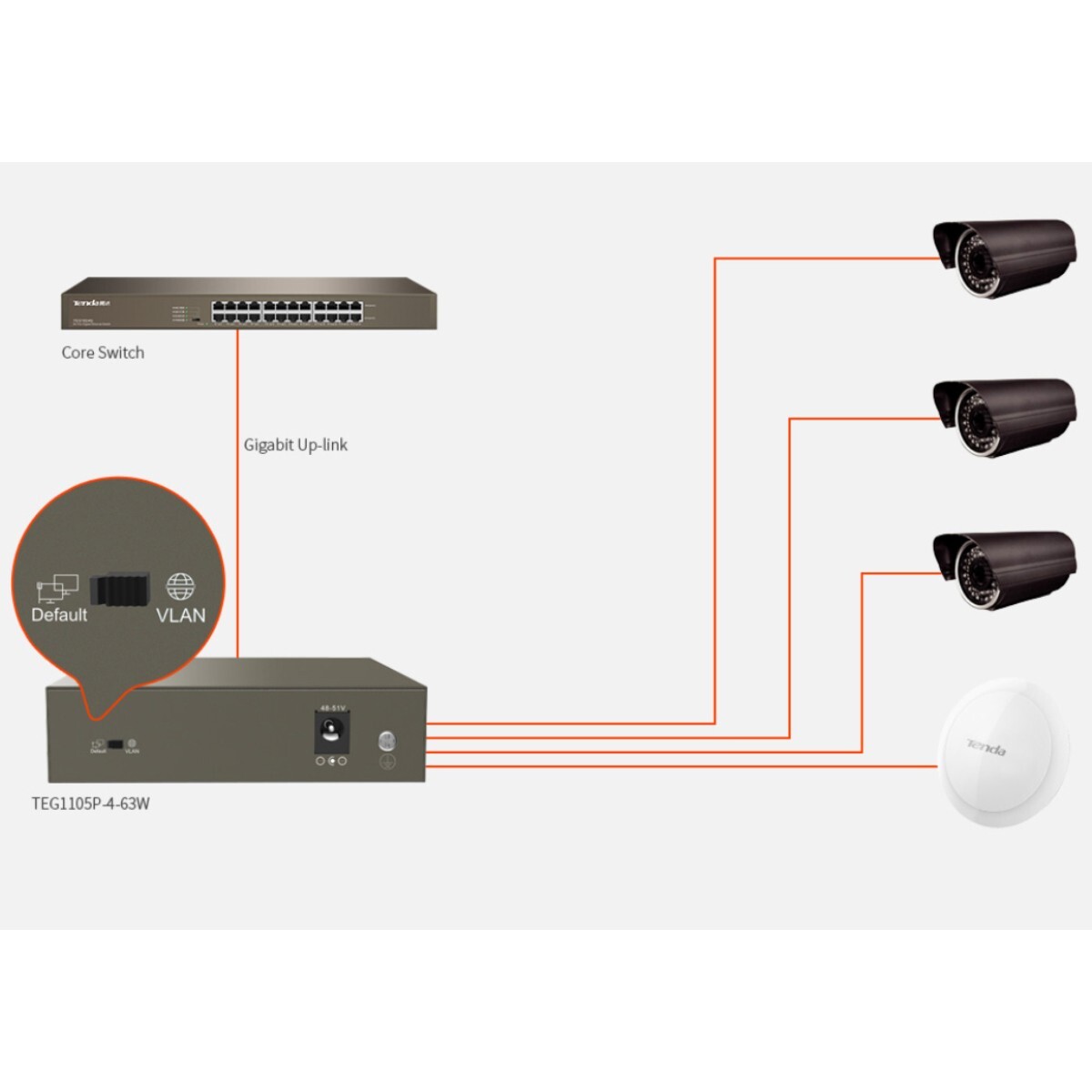

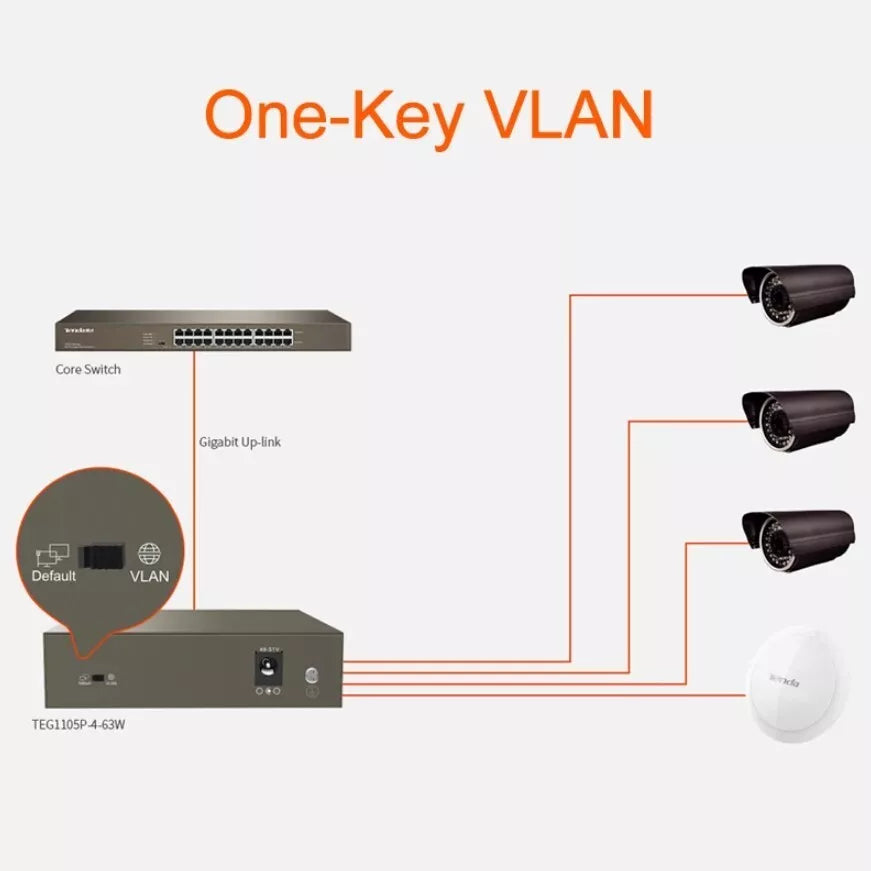

- VLAN Mode: If "vlan mode" is enabled, VLAN isolation is enabled. Port 1-4 will be isolated respectively but can communicate with the Uplink port.
- Default Mode: If Default mode is enabled, the device works as a general switch and all ports support 10/100/1000Mbps auto-negotiation.
