Description

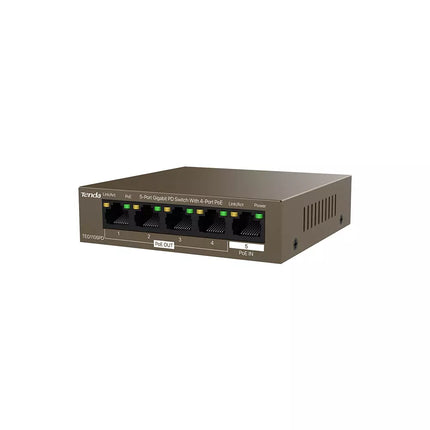

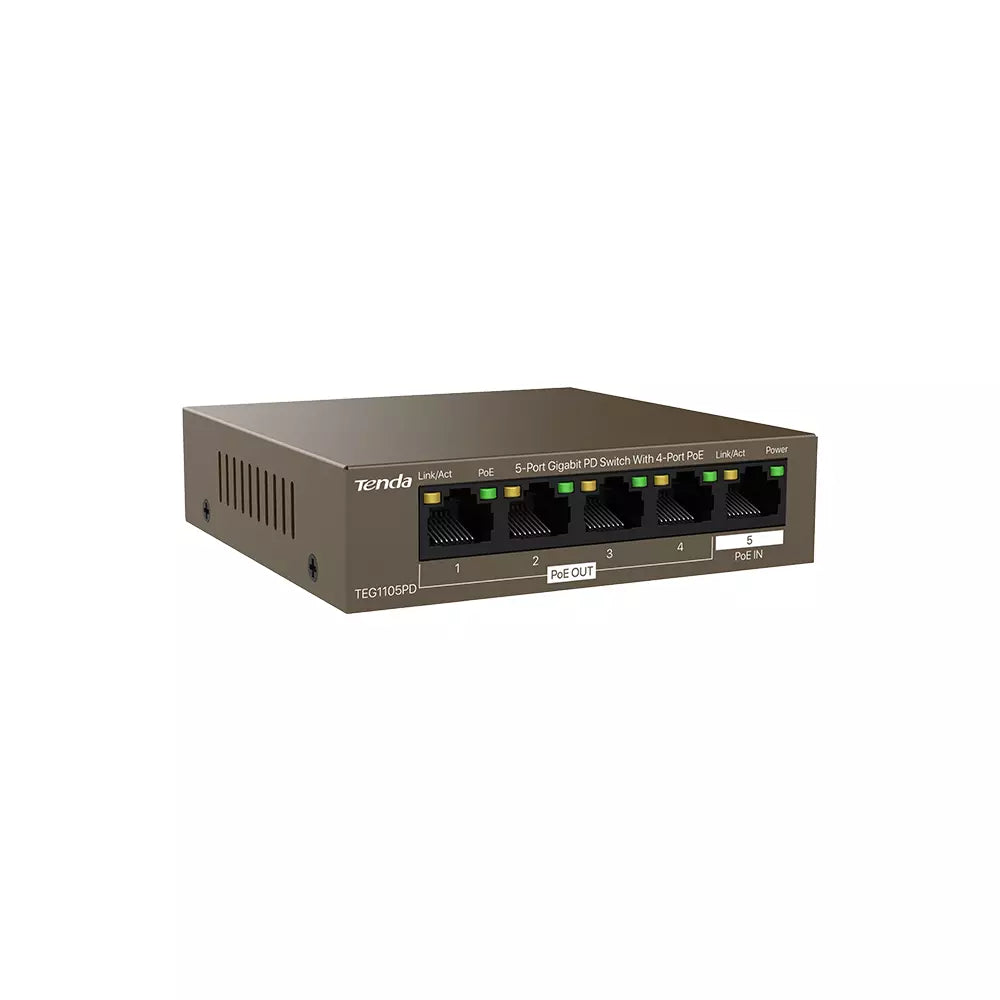

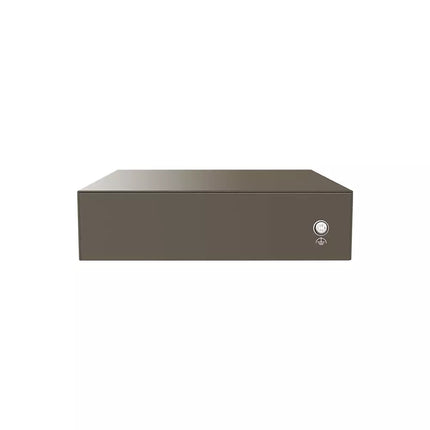

Featuring low cost, high performance and plug&play, the PoE switch TEG1105PD is both a PSE and a PD, designed for such surveillance networking scenarios roads in parks/communities, medium to large factories, and colleges. Small and delicate, it can be installed in an outdoor waterproof box easily. The switch provides four10/100/1000Mbps PoE OUT ports (ports 1 to 4) compliant with IEEE802.3af and one 10/100/1000Mbps PoE IN port (port5) compliant with IEEE802.3af/at. The maximum PoE output power of the whole switch is 22 W. The switch can supply power and transmit data to low-power APs and IP cameras through CAT5 cables, greatly reducing the cost of network deployment. It is an ideal choice for wired networking in monitoring scenarios of middle to long distance.
Highlights:
- 5 10/100/1000 Mbps auto-negotiation ports
- Port 5 supports power supply by a PSE compliant with IEEE 802.3af/at
- Ports 1 - 4 support power supply to low-power PDs compliant with IEEE 802.3af
- The switch supports auto MDI/MDIX, simplifying the network structure and maintenance.
- The non-blocking wire-speed forwarding function guarantees the smooth operation of network applications.
- Full-duplex flow control and half-duplex back pressure control prevent frame loss caused by port blocking.
- The switch supports the store-and-forward transfer mode and a 2 K MAC address table.
- The switch supports 9K jumbo frame, improving the forwarding rate of large files.
- The switch supports IP camera connection and guarantees the smoothness and clearness of monitoring videos.
Specifications:
- Product Model: TEG1105PD
- Network standards: IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at
- LED indicators:
- 1 x Power LED indicator
- 4 x PoE LED indicators
- 4 x PoE LED indicators
- Fixed ports: 5 x 10/100/1000 Mbps auto-negotiation RJ45 ports (supporting Auto MDI/MDIX)
- Transmission media:
- 10Base-T: CAT3 UTP or better
- 10Base-T: CAT3 UTP or better
- 1000Base-T: CAT5e UTP or better
- Dimensions (L x W x H): 100 mm x 100 mm x 26 mm
- Product material: Metal
- Fan: Fanless
- PoE out:
- PoE standard: IEEE802.3af
- PoE power cable core: 8 cores: voltage of cores 1,2,4,5 is+, and cores 3,6,7,8 is-
- PoE port: 1-4
- Maximum output power of a single port: 15.4W
- Maximum output power of the switch: 22W
-
PoE in:
- PoE in standard: IEEE802.3af
- PoE in port: 5
- PoE input: 50-57V DC，0.6A
-
Protection:
- Port lightning protection: 6 kV
- Power lightning protection: No
- Electrostatic protection: Air discharge: ±8 kV Contact discharge: ±6 kV
- Forwarding mode: Store-and-forward
- Switching capacity: 10Gbps
- Packet forwarding rate:
- 10Mbps：14880pps
- 100Mbps：148800pps
- 1000Mbps：1488000pps
- Buffer: 1Mb
- MAC address table: 2K
- Jumbo frame: 9K
- MAC address learning: Auto-learning, auto-updating
- Installation method:
- Desktop mounting: Support
- Wall mounting: Not support
- Rack mounting: Not support
-
Environment:
- Operating temperature: 0°C - 45°C
- Storage temperature: -40°C - 70°C
- Operating humidity: (10% - 90%), non-condensing
- Storage humidity: (5% - 90%), non-condensing
