Description
Turn your notebook into a full-fledged workstation with the Ugreen 12-in-1 Fast Charge Universal Docking Station. Giving you a wide variety of ports and ample connectivity options, you can easily expand the utility of your notebook.
Highlights:
- 12-in-1 expansion
- 2 x USB-A 3.2 Gen 1, 1 x USB-A Gen 2 Port
- 1 x USB-C 3.2 Gen 2 Port
- 2 x HDMI, 1 x DisplayPort Video Output
- SD & microSD Card Slots
- Gigabit Ethernet LAN Port
- 3.5mm Combo Audio Jack
- USB-C Host Connection
- 100W Power Delivery
- Triple Display Support
- 8K Max Resolution at 30 Hz
Brand NEW In Original Retail Packaging
A single USB-C input uses a detachable cable to connect to your host device for a simplistic setup. One DisplayPort and two HDMI ports are available, supporting up to three displays simultaneously with support up to 8K resolution at 30 Hz. You can connect a range of peripherals with two USB-A 3.2 Gen 1 ports located on the back and USB-A and USB-C 3.2 Gen 2 ports at the front, giving you up to 5 and 10 Gb/s data transfer speeds, respectively. Quickly transfer data from your mobile devices with SD and microSD card slots. A 3.5mm combo audio jack supports headsets for private listening of your favorite media. Utilize a wired network connection with the Gigabit Ethernet LAN port, offering a strong and reliable signal. A single USB-C port uses 100W Power Delivery to keep your host device charged while in use.
About this item

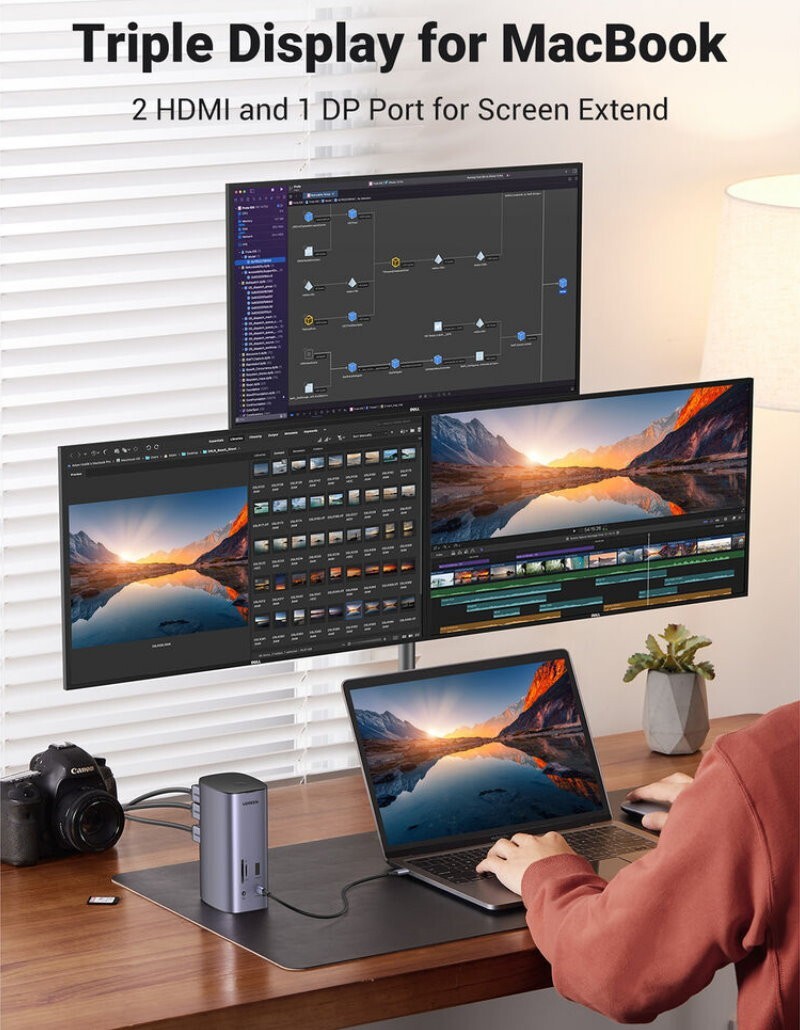

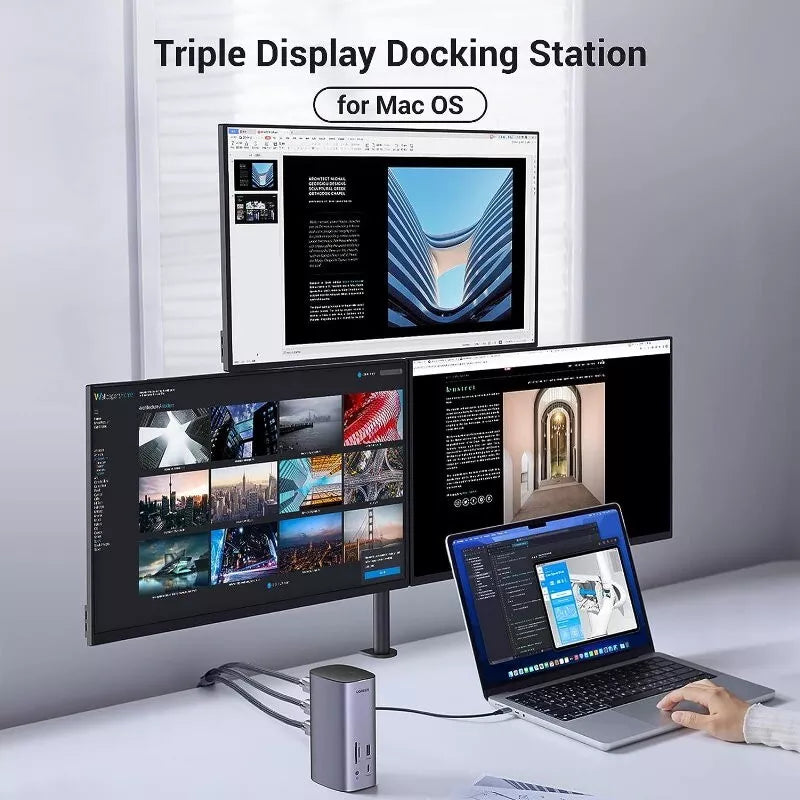

Triple Display Extended

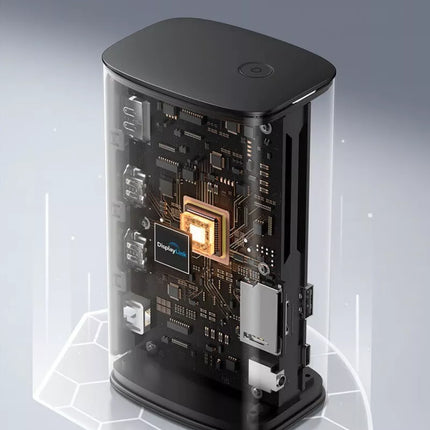

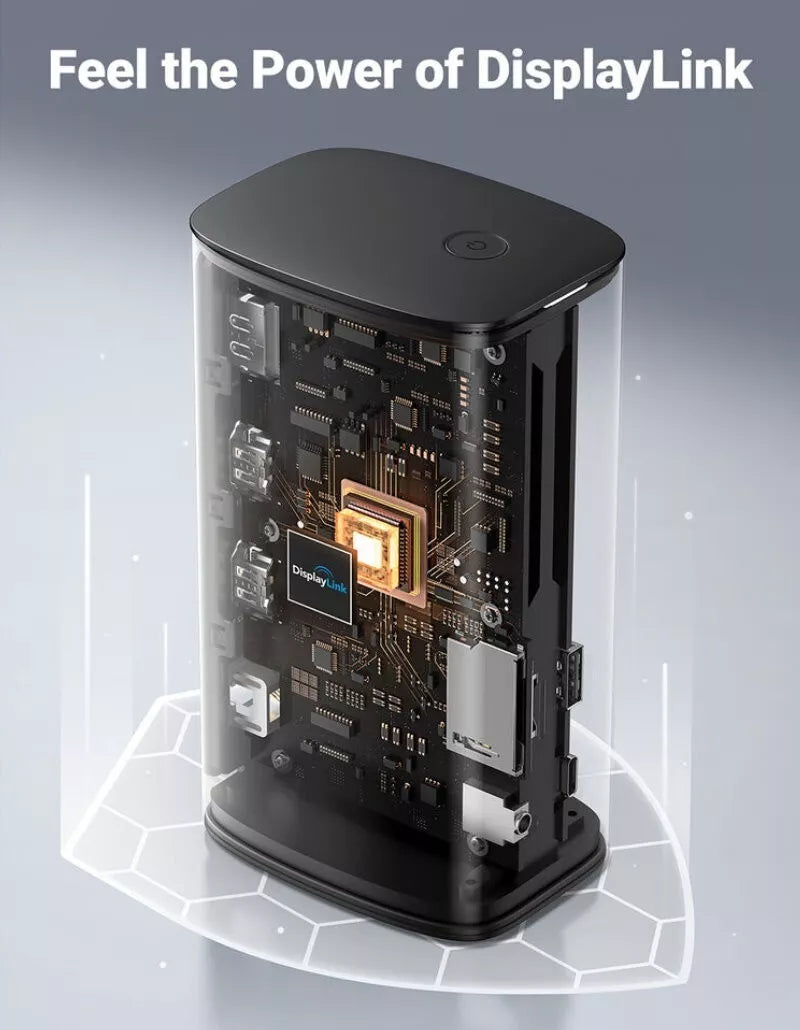

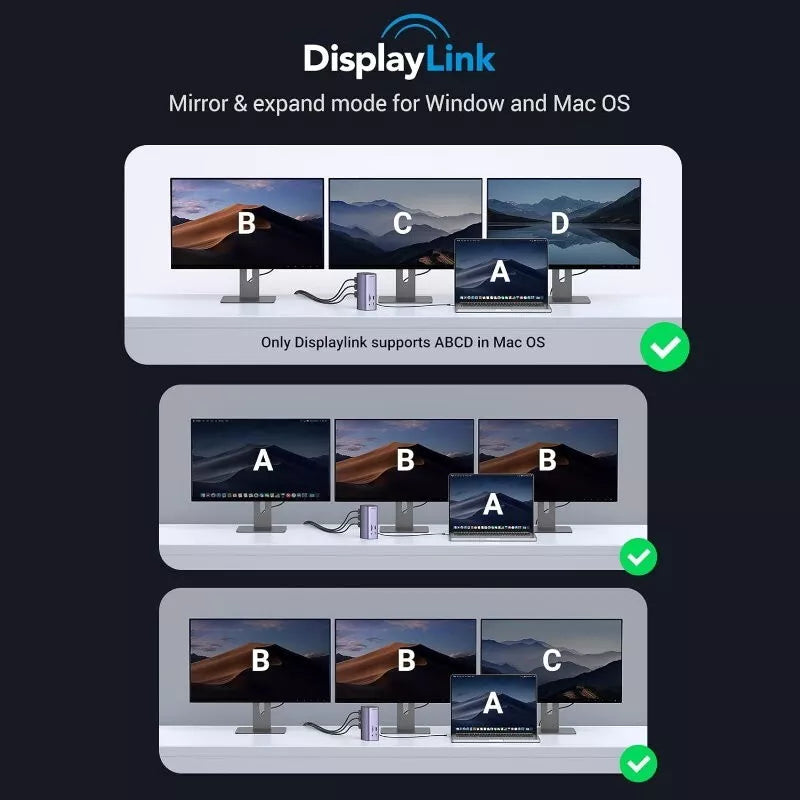

With the DisplayLink technology, UGREEN USB C Docking Station support extends 3 monitors for Windows and macOS systems. It supports both extended mode and mirror mode, which can greatly improve your work efficiency. (Note: Display and network functions need to install the driver)
12-in-1 Expansion

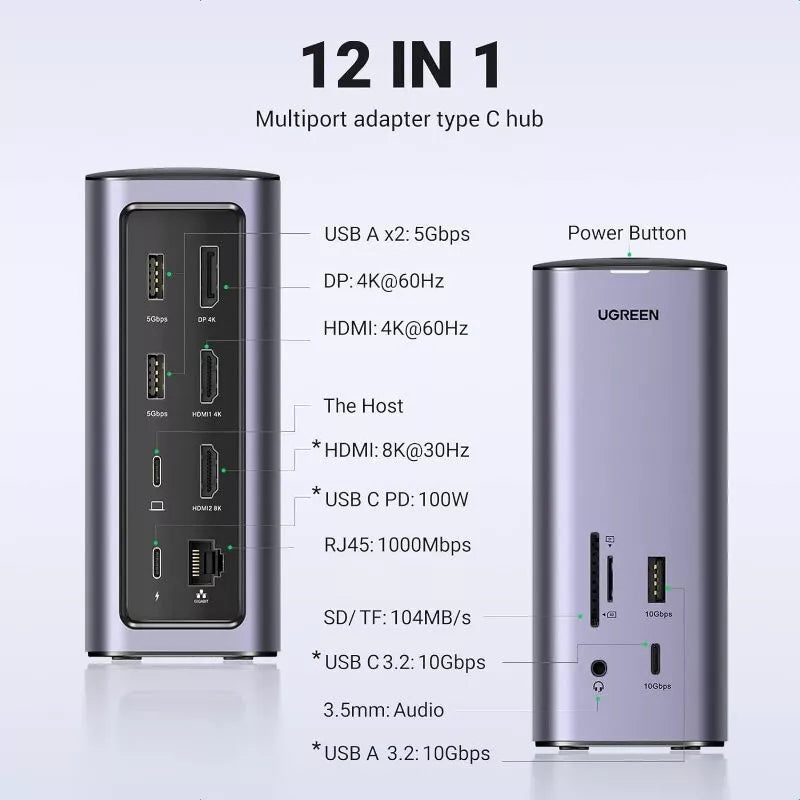

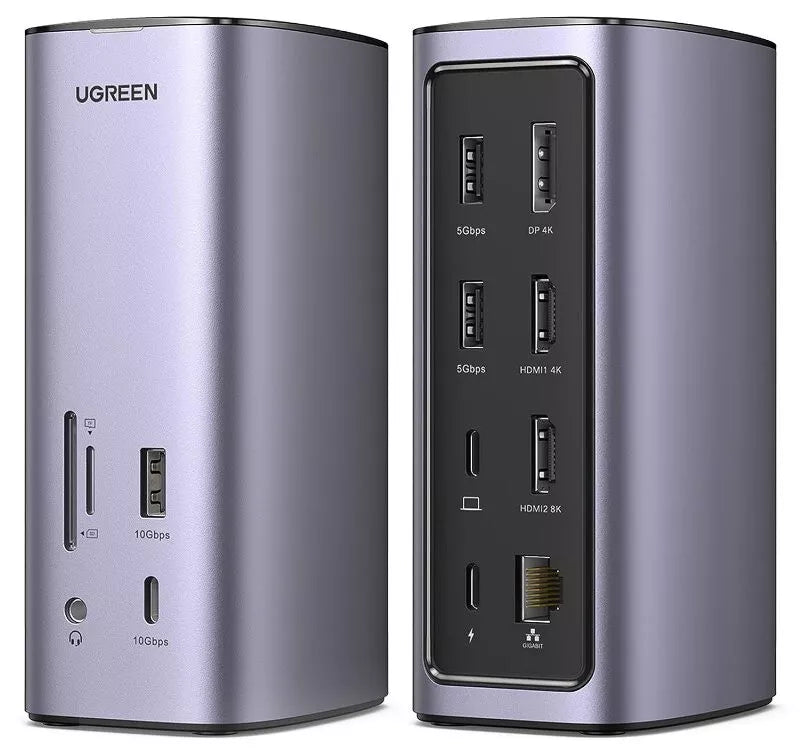

The 12-in-1 USB C Dock is equipped with 12 expansion ports, which are 1x HDMI 8K, 1xHDMI 4K, 1x DP 4K, 1x PD 3.0 100w, 1x USB A 3.2, 1x USB C 3.2, 2x USB A 3.0, 1x Gigabit Ethernet, 1x SD/Micro SD card slots, and 1x 3.5mm AUX ports. It can meet almost all the needs of your daily work.

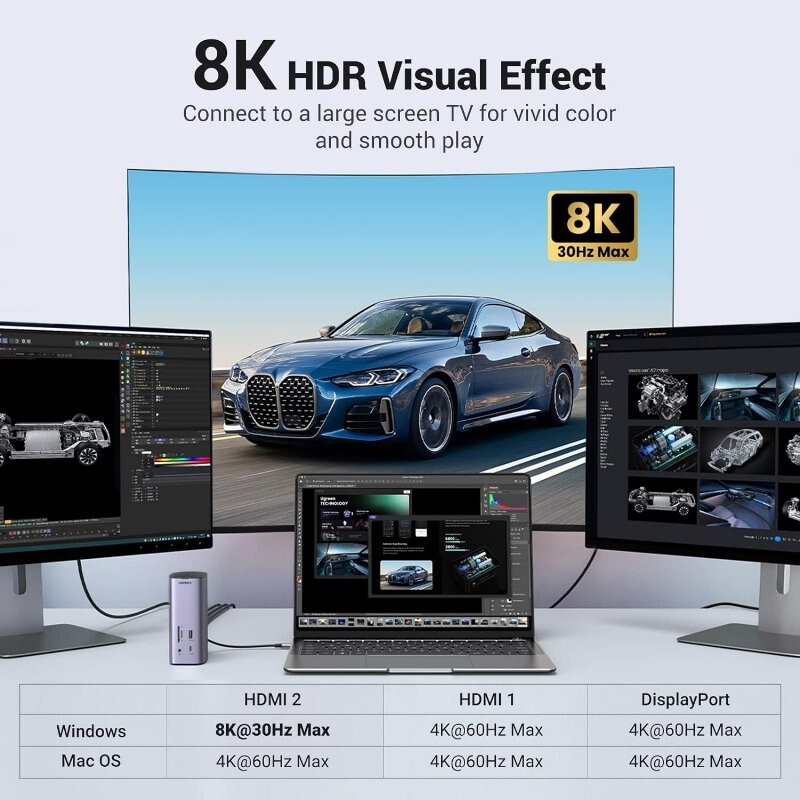

8K/4K HD Display
The HDMI2 port supports up to 8K@30Hz display for Windows and up to 4K@60Hz for macOS. The HDMI1 and DP ports support up to 4K@60Hz display for both Windows and macOS. Let you enjoy the ultimate visual experience.
Transfer Files in Seconds
With 1x USB-A 3.2 Gen 2 and 1x USB-C 3.2 Gen 2 ports, this Macbook Docking Station supports up to 10Gbps data transfer speed. It can meet your needs of transferring data in a very short time, greatly saving your waiting time.
PD 100W Fast Charge
The 12-in-1 Laptop Docking Station is equipped with a 100W PD 3.0 charging port. It only takes 1.5 Hours to fully charge Macbook Pro 15'', and without taking up another port of the laptop. (The charger is not included)
Note: If your computer doesn't have a CD Drive to install the driver, you also can easily install the driver through the User Guide (PDF) of product guides and documents or check the User Manual.
Q & A
Does the docking station come with a power adapter?
No, it doesn't come with a power adapter. If you want to charge your laptop or ensure stableperformance, please connect your original power adapter to the "PD" port of the docking station.
Why can't my network, HDMI 1 (4K), and DP ports work?

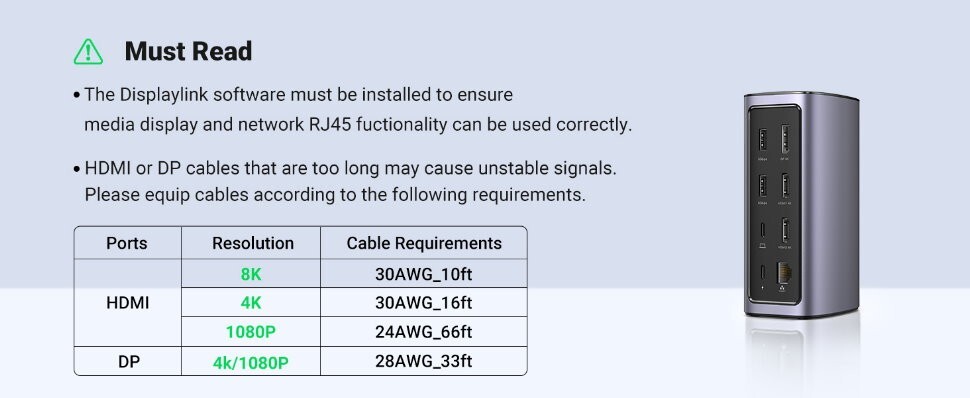

The network, HDMI 1, and DP ports need to download and install the DisplayLink driver before use. You can easily install the driver through the User Guide (PDF) of product guides and documents or check the User Manual.
Why can't my HDMI 2 (8K) port work?
The HDMI 2 (8K) port only can work when the usb c port of your host device support video output.Please make sure the usb c port of your host device support video output.
Why can't my monitor reach 8K or 4K resolution?
You need to ensure that your laptop supports 8K or 4K resolution output (Macbook only supports 4K), and make sure that your HDMI or DP cable and monitor support the corresponding resolution. How can I set the display mode, display order, and display rotation angle?For macOS, you can check the "MacOS Operation Guide" video of the product page or check the "User Manual" to know how to set.For Windows, you can check the "User Manual" to know how to set.
Why can't my network, HDMI 1 (4K), and DP ports work?
The network, HDMI 1, and DP ports need to download and install the DisplayLink driver before use. You can easily install the driver through the User Guide (PDF) of product guides and documents or check the User Manual.
Why can't my HDMI 2 (8K) port work?
The HDMI 2 (8K) port only can work when the usb c port of your host device support video output.Please make sure the usb c port of your host device support video output.
Why can't my monitor reach 8K or 4K resolution?
You need to ensure that your laptop supports 8K or 4K resolution output (Macbook only supports 4K), and make sure that your HDMI or DP cable and monitor support the corresponding resolution.
How can I set the display mode, display order, and display rotation angle?
For macOS, you can check the "MacOS Operation Guide" video of the product page or check the "User Manual" to know how to set. For Windows, you can check the "User Manual" to know how to set.
Specifications:
- Brand: Ugreen
- Model: 90325
- Cplour: Grey
- Power I/O: USB-C
- Dimensions: 18.3 x 11.2 x 10.4cm
- Weight: 805g

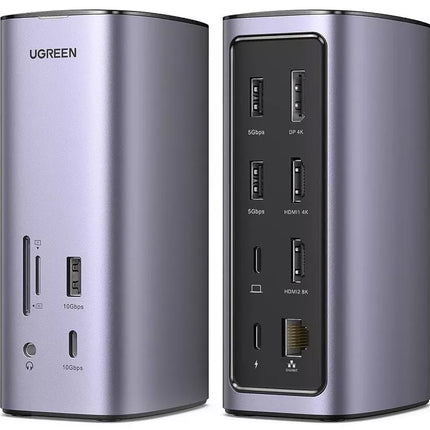

Ports
- USB: 2 x USB-A 3.0 / 3.1/3.2 Gen 1, 1 x USB-A 3.1/3.2 Gen 2, 1 x USB-C 3.1/3.2 Gen 2, 1 x USB-C (Charging Only)
- Ethernet: 1 x RJ45 (10/100/1000 Mb/s)
- Display: 1 x DisplayPort, 2 x HDMI
- Audio: 1 x 1/8" / 3.5 mm Headphone/Microphone Combo Jack
- Media Card Reader: 1 x microSDHC, 1 x SDHC
- Host Connection: USB-C (Unspecified Interface)
Host Connections
- Host Connection: USB-C (Unspecified Interface)
- Connection Type: Detachable Cable
- Powered Connection: 100 W USB Power Delivery 3.0
General
- Number of Displays Supported: 3
- Maximum Resolution Supported: 7680 x 4320 at 30 Hz (Single Display)
- HDCP Support: Yes
What's Included
- 1 x 12-in-1 USB-C Docking Station
- 1 x USB-C to USB-C cable
- 1 x Manual
- 1 x Driver Installation CD
