Description
UGREEN M.2 NVMe USB-C Enclosure is designed to house a M-Key or M B Key NVMe PCIe SSD and turn it into a portable external drive for maximum utilization. Tool-free and no driver needed, just plug and play. Ideal for cloning files, backing up data, reusing old M.2 SSD, expanding storage space.
Highlights:
- ONLY for NVMe PCIe M.2 SSD
- 10Gbps with UASP accelerated
- Tool-Free installation
- Broad compatibility
- User friendly design
- Reliable & durable
- Easy to use
Brand NEW In Original Retail Packaging

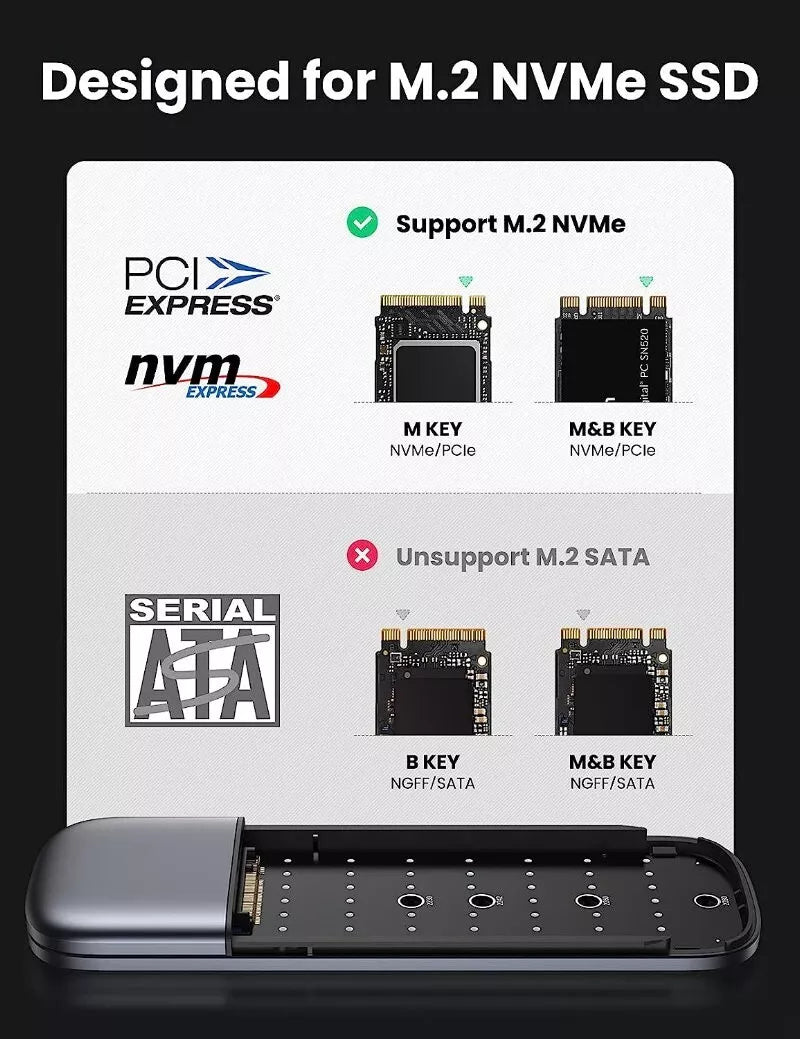

Designed for NVMe PCIe M.2 SSD

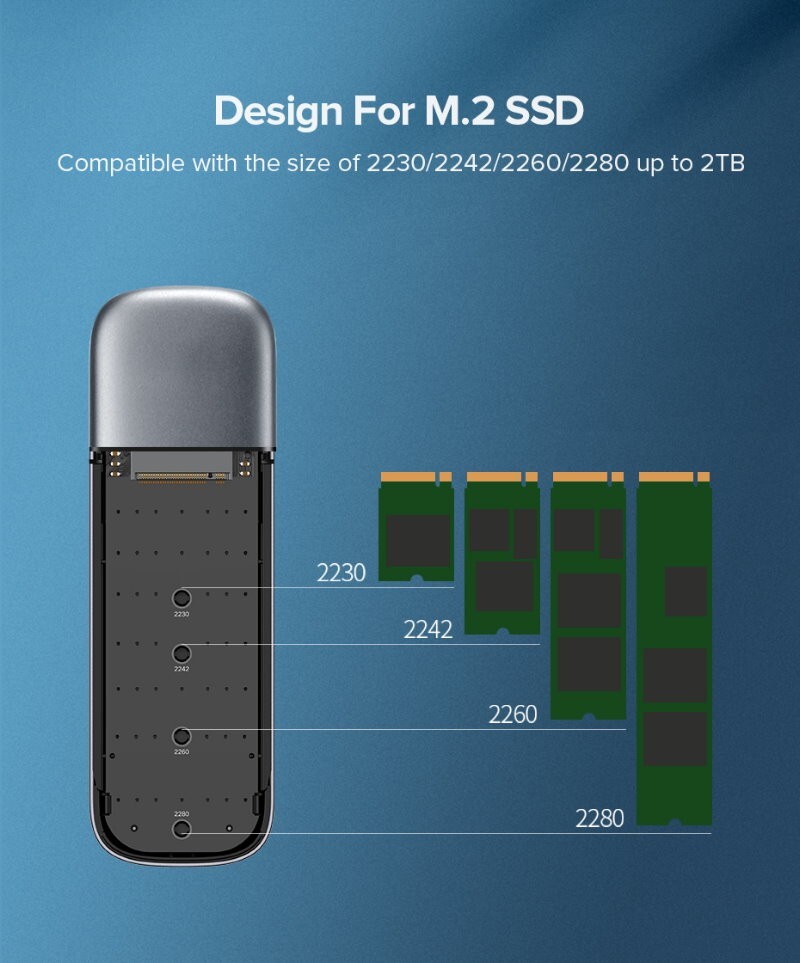

This compact NVMe M.2 Caddy is specially designed for M-Key and M+B Key PCIe NVMe M.2 SSD of 2230/2242/2260/2280 up to 4TB.
Does not support M.2 NGFF SATA based B-Key and M&B-Key M.2 SSD, M.2 PCIe AHCI SSD, mSATA SSD.
About this item
ONLY for NVMe PCIe M.2 SSD
【Does not support NGFF SATA based B-Key and M&B-Key M.2 SSD, M.2 PCIe AHCI SSD, mSATA SSD.】
UGREEN M.2 SSD Enclosure is specially designed for M-Key & M B Key NVMe PCIe based SSD up to 4TB. Offering an easy way to connect M.2 SSD with your USB-C (Thunderbolt 3 Compatible) laptops for file backup, disk upgrade, clone, data recovery and storage expansion.

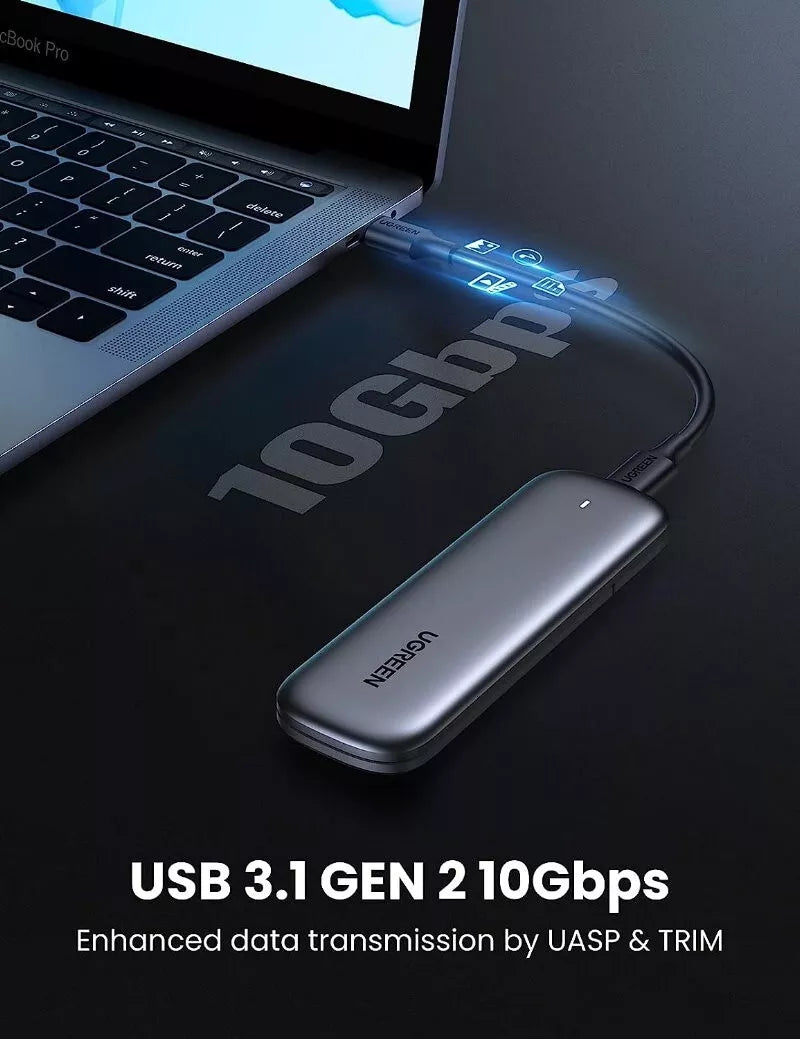

10Gbps with UASP Accelerated

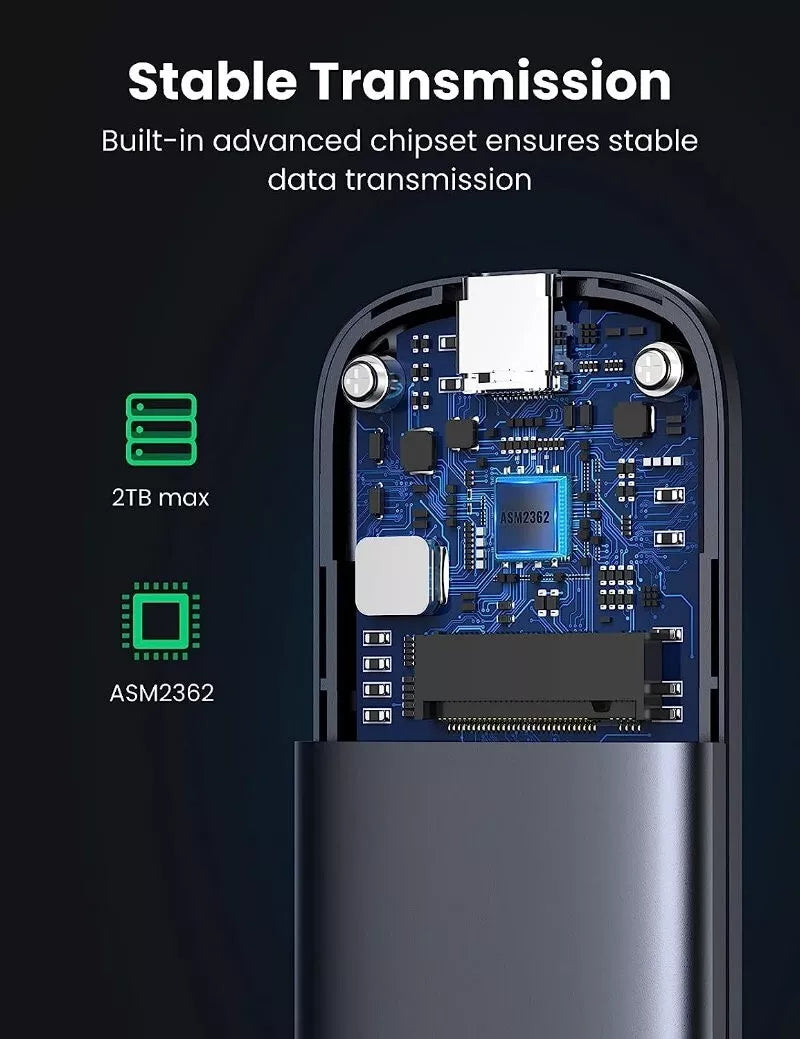

With the latest USB 3.1 Gen2, PCIe Gen3 and UASP ready, this M.2 enclosure achieves 10Gbps data transmission rate from NVMe PCIe SSD to USB-C laptops, which is faster enough to transfer 10GB files in 10 seconds. The advanced ASM2362 chip greatly ensures a steady and speedy transmission. Your NVMe SSD will perform at its best with super speed transmission at 900-998MB/s reading and writing.

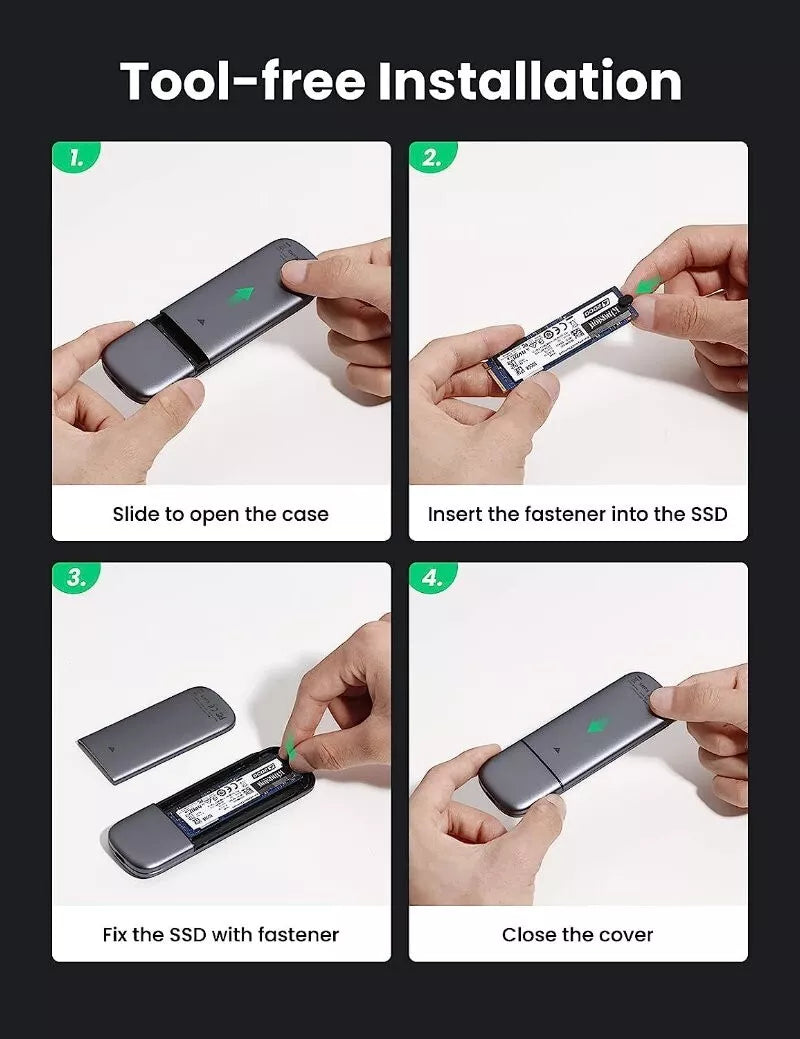

Tool-Free Installation
UGREEN M.2 NVMe enclosure allows quick and easy installation of your M.2 NMVe SSDs. Plug and play, no driver needed. Just slide the back cover and open the case, plug your M.2 SSD into the M-Key or M&B-key slot, fasten with two rubbers included, finally close the cover. Compact and portable with a sleek aluminum shell for easy carrying while on the go.
Broad Compatibility
Supports Windows, LINUX, Mac OS 8.0 and above systems. Compatible with Samsung 970 EVO Plus/ 970 EVO/970 Pro/960 EVO/950 PRO/PM981/SM961/ PM951, WD Black SN750, Crucial P1 1TB, HP EX900, Intel Optane 800P/760P, Toshiba RC100/XG5/XG6, ADATA XPG SX8000, CORSAIR MP300/MP510, Plextor M9Pe/M8Pe, Kingston A1000,Pioneer APS-SE10G-512, Extreme PRO m.2, Seagate BarraCuda 510, etc.
User Friendly Design
Made of premium aluminum alloy for better heat dissipation, no cooling fan is needed for high-speed working. The LED indicator lets you know the working status easily. Features S.M.A.R.T function to check the status of your M.2 SSD on computer. Built with short-circuit, over-current and multi-protection to ensure safety for your SSD and valuable data.
Speedy Data Transfer
Supports amazing data transmission rate up to 10Gbps, transfer 1GB files in 1 second.
S.M.A.R.T. Supported
Self-Monitoring Analysis and Reporting Technology for reflecting on disk reliability.
Quick Heat Dissipation
Aluminum housing, more efficient metal thermal conductivity for better heat dissipation.
Warm Reminder
1. Only support PCIe NVME M-Key M.2 SSD. Not Support PCIe AHCI M.2 SSD or M.2 NGFF SATA SSD. Some SSDs have both AHCI & NVMe or SATA & NVMe editions available. For example, Samsung SM951 SSD.
2. To achieve 10Gbps data transmission rate, the USB 3.1 interface on your PC should be USB 3.1 Gen 2. Some PCs only come with USB 3.1 Gen1 whose max speed is 5Gbps.
3. It is normal that the aluminum case heating up, for the high-speed NVMe M.2 drives generates much heat while working.
Q&A
How to distinguish NVMe from NGFF SSD?
1. NVMe SSD is with the "NVMe express" or "NVMe M.2" symbol, SATA is with the "ATA" or "SATA M.2" symbol.
2. Read and write speed of NVMe is more than 800MB/s, while that of NGFF is less than 550MB/s.
3. Check it with the manufacturer of your SSD.
Is it normal that the enclosure heating up?
It is normal that the aluminum case heating up, for the high-speed NVMe M.2 drives generates much heat while working. The Silicone Case could protect you from heat when you move the NVMe enclosure.
The computer cannot read and write the SSD?
If your M.2 SSD is the first use, you should format it before using. Only in this way can SSD be recognized by computers.
The PS5 cannot read and write the SSD?
Please back up the data first, then format the SSD by following these steps
1. Connect your USB drive to a USB port on the back of your PS5 console.
2. Go to Settings > Storage.
3. Select USB Extended Storage > Format as USB Extended Storage.

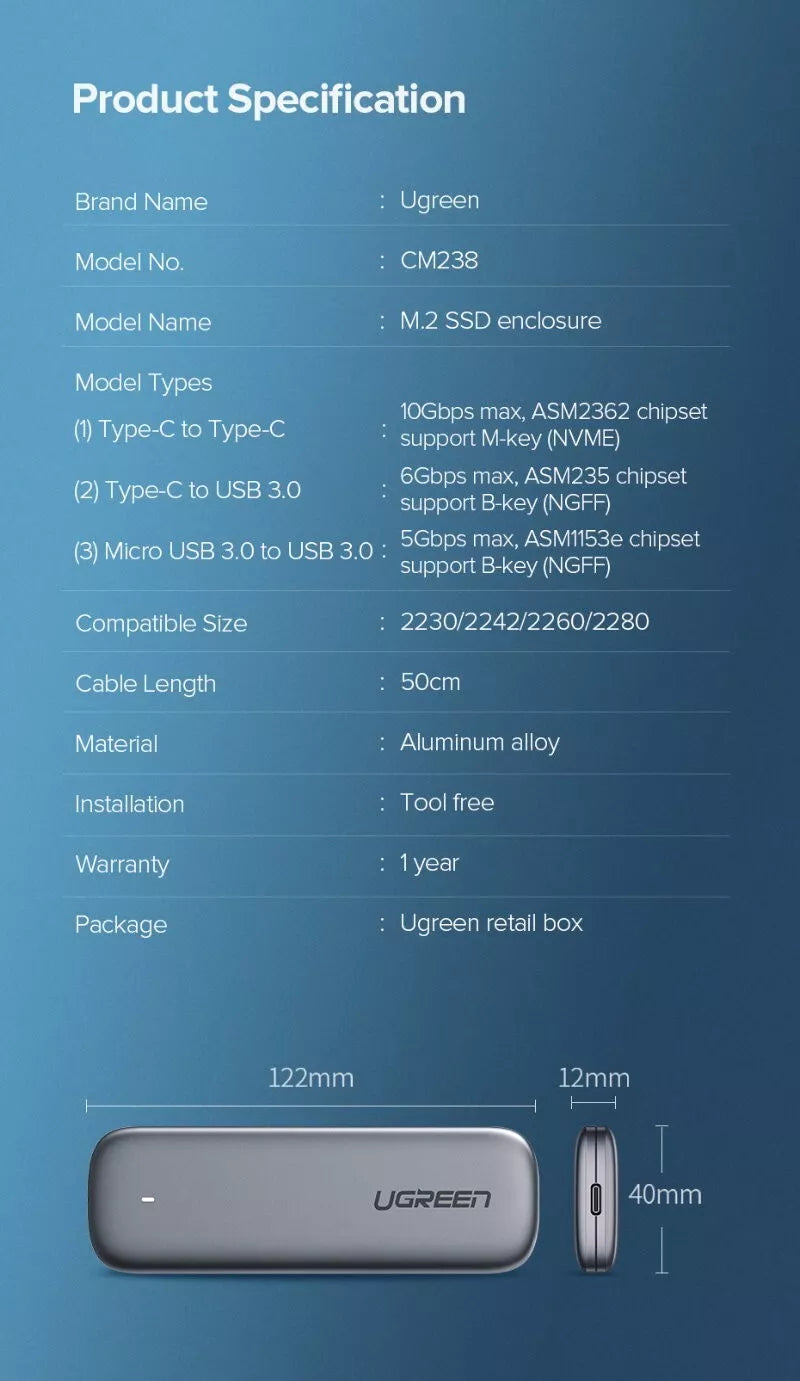

Specifications:
- Brand: Ugreen
- Model: 60354
- Model Name: M.2 SSD enclosure
- Output: M.2 M-Key
- USB Specification: USB 3.1 GEN 2 standard at transfer rate up to 10Gbps, backwards compatible with USB 3.0/2.0/1.1
- Supports Hard Drive: M.2 NVME SSD with 2230/2242/2260/2280 4 specifications
- Max Capacity Supported: 4TB
- Supports UASP Accelerated Transport Protocol
- Supports TRIM directives
- Supports Windows/MAC OS/Linux
- Cable Length: 50cm
- Dimensions: 122 x 40 x 12 mm (LxWxH)
- Weight: 110g
What's Included
- 1 x UGREEN 60354 M.2 NVMe PCIe SSD Enclosure
- 1 x UGREEN USB-C to USB-C cable 50cm
- 1 x Manual
